TITAN TRADING is reeds 4 jaar importeur van Davinci pelletkachels, kwaliteit kachels geproduceerd door een familie bedrijf in Bulgarije met gerenomeerde electronische componenten van de Italiaanse fabrikant; Micronova. de kachels voldoen aan de hoogste standaards EN14785,EN303-5,EN13445 EN60335 EN50165. TITAN TRADING geeft 2 jaar garantie op fabrieksmankementen.
DAVINCI pelletkachels zijn moderne Pelletkachels ontworpen volgens
de laatste Technische innovaties voor verwarmen met houtpellets
.Bij het ontwerp is rekening gehouden met het milieu en de natuur.
Verder stond het gebruikers gemak van de kachel op de voorgrond.
De moderne pelletkachel verbrand hout pellets optimaal.
Doordat de specificatie van de brandstof volgens geringere toleranties geproduceerd
wordt dan in het geval de verwarming gebeurt met normaal hout waarbij
grote verschillen kunnen bestaan in samenstelling en vochtgehalte. gezien
de hoge calorische waarde van hout pellets en de optimale gecontroleerde verbranding
.wordt een hoog rendement verkregen,zodat met een geringere hoeveelheid brandstof
economisch verwarmt kan worden.Door de optimale verbranding wordt er slecht
een kleine hoeveelheid as geproduceerd .Ook bevatten de verbrandingsgassen
minder giftige bestanddelen.alles tezamen is het verwarmen met hout pellets
een verwerkingsmethode waarbij het milieu gespaard wordt. DAVINCI zijn
moderne Pelletkachels ontworpen volgens de laatste Technische innovaties
voor verwarmen met houtpellets.Bij het ontwerp is rekening gehouden
met het milieu en de natuur.Verder stond het gebruikers gemak van de kachel
op de voorgrond. De moderne pelletkachel verbrand hout pellets optimaal.
Doordat de specificatie van de brandstof volgens geringere toleranties
geproduceerd wordt dan in het geval de verwarming gebeurt met
normaal hout waarbij grote verschillen kunnen bestaan in samenstelling
en vochtgehalte. gezien de hoge calorische waarde van hout pellets en de optimale
gecontroleerde verbranding .wordt een hoog rendement verkregen,zodat met een
geringere hoeveelheid brandstof economisch verwarmt kan worden.Door de optimale
verbranding wordt er slecht een kleine hoeveelheid as geproduceerd .Ook bevatten de
verbrandingsgassen minder giftige bestanddelen.alles tezamen is het verwarmen met
hout pellets een verwerkingsmethode waarbij het milieu gespaard wordt.
|
GENERAL INFORMATION
Ecologie en TECHNOLOGIE
- Geautomatiseerde verwarmen zonder de noodzaak van voortdurende controle en verwarming in een vooraf bepaalde programma;
- Eeenvoudig aante passen vermogen van de kachel.
- Elektronische regeling van het verbrandingsproces;
- Schone verbranding
- Eenvoudig te reinigen en onderhoud;
- Vaste brandstof;
- De mogelijkheid voor economisch gebruik van de brandstof door het optimaliseren van het verbrandingsproces;
- Sfeer door zichtbare vlammen
The stove is designed for burning pellets in a small percentage of pits and dried maize in a mixture with pellets.
Almost the entire part of the thermal power of the fireplace is concentrated in the water jacket of the heating main coolant-water. A too small part of power radiates from hearth. This power through infrared radiation and convection can warm the room in which the fireplace is located.
DESCRIPTION
Pellet stoves “DA VINCI” are designed and manufactured according to the latest contemporary concepts for heating with biomass, the utmost respect nature and the environment and at the same time facilitating the user, given the high calorific value per unit volume of fuel, its convenient transportation, the minimum quantity of soot and ash in combustion and last but not least – the separation of minimum quantities of harmful gases during incineration and also environmentally sound production.
Pellet stoves “Da Vinci” provide thermal comfort with minimal time for service. They are designed primarily for use in urban environments, where porting and combustion of wood or coal is inconvenient, cumbersome or polluting. The combustion process runs automatically, without requiring continuous surveillance and/or loading. Management and maintenance of the combustion process is carried out with the help of embedded microcomputer system supplied from the mains and consuming insignificant amount of electricity.
Pellet stove “Da Vinci” is intended for heating of family houses, apartments, offices, production halls and other similar objects with heat losses from 5-25 kW.
The stove is a modern, high-efficiency and environmentally sound means for burning pellets (pressed wood chips). The heating system is with forced circulation of the heating water and allows the use of both open and closed expansion tanks.
MODELS
Pellet stoves “Da Vinci” are manufactured in three different with different power:
- DV 140 AIR (small-14 kW)
- DV 140 HIDRO (small-14 kW)
- DV 180 HIDRO (median-18 kW)
- DV 220 HIDRO (large-22 kW)
- DV 250 HIDRO (large-25 kW)
The two latest different have the same external dimensions. The action and the way of management and use of the three models is the same.
FUEL
The main fuel, which uses the stove, Pellet, but can also be used dry pits, as well as dried corn. The pits and corn can be burned in small relative amounts, up to a maximum of 15% of the mass of the main fuel and mixed with it.
ELECTRONIC CONTROL SYSTEM
The process of burning is controlled using the built-in electronic system.
At the top of the stove is located in command box to set the current parameters of combustion and control of the combustion process. The command box is part of the microcomputer system, control of the stove.
Electronic management system consists of two blocks: display, located in the rear part of the upper decorative lid Fireside and managing block, which is located on the bottom base inside the fireplace. The two units are connected to each other with the necessary information and power lines.
The electronic system performs the following tasks:
- define, select and maintain the power of the stove;
- powered and operated motor for the venting of the combustion chamber;
- powered, manage and monitor the correct operation of the motor drive mechanism, screw conveyer;
- monitor certain internal temperatures in the stove and when they exit outside the predefined tolerances generates appropriate corrective actions;
- protecting and providing safety of shafts stove in incorrect handling of user;
- submit appropriate messages in exceptional events leading to errors in the work of the stove;
- provides a programming service of the combustion process.
SETTINGS AND MODE OF OPERATION OF THE STOVE
The power of the stove can be changed in nine grades ranging from 1 to 9. Each level of power is associated with a flow of air that ventilates the combustion chamber, the low rate is that in 1st grade, and the highest in 9th grade. Provision of prescribed flow-rate is accomplished by changing the speed of rotation or the power of the drive motor.
In order to achieve a power of the stove, it is necessary to burn a certain amount of pellets per unit time. The increase in power is achieved by increasing the quantity of fuel supplied. The fuel is fed through the periodic rotation of the screw mechanism that transports the pellets from the hopper to the combustion chamber.
The Auger is driven by electric motor with reducer. Operation of the engine is periodic, with two phases: stroke and pause. The move is depending on the degree to which working stove. The power is changed by changing the time during which work the Auger mechanism. This program can be adjusted for an unlimited number of times on request, with a view to optimizing the process. The experience and knowledge of the manufacturer indicated that the optimal ratio of capacity between the 1st and 9th grade moves from 1: 5 to 1: 6, which in most cases is completely satisfactory. The construction of the stove allows the receipt of greater ratio (up to about 1: 7), but it is tied to the quality of the pellets.
The command box is located at the rear of the top decorative plate on the stove. Its purpose is to implement the switching on and off of the stove, start and stop the burning process, setting up and management of all the functions, as well as servicing of the stove.
ECONOMY, SAFETY AND SECURITY
The electronic system is designed to work with the minimum possible cost of electricity using modern element base and cutting-edge technical solutions. Thus is the stove adds to the energy saving systems and apparatuses.
The electronic system is designed so that it can ensure the trouble-free continuous work of the stove on 24 hours a day within the heating season – 6 months.
When the network voltage operation of the stove is suspended, if it is not equipped with a cigarette lighter and a weekly programmer. If the network voltage is established the stove in position. To recommence its work must be lighted again.
Dependence on the presence of mains voltage is an advantage in terms of safety of operation. Since dropping the network voltage circulation pump in the heating Highway stops operating if the stove continue to work, would have created the conditions for overheating of the water in the water jacket and repeatedly increasing pressure due to the steam phase. In this sense, the dependence of the network and the suspension of work in the absence of mains voltage can be regarded as a defensive feature of the stove.
The system provides the required custom features-measuring, set, monitor and maintain the desired temperature in heated premises, able to compile user programs for work of the stove at the power level or the value of the temperature in the day time zones, and also for the current week.
|
MODEL |
|
|
|
|
PARAMETER//// MODEL: |
DV 140 AIR |
DV 140 HIDRO |
DV 180 HIDRO |
DV 220 HIDRO |
DV 250 HIDRO |
Maximum value of the effective rated output Rmax (grade 5) – a water jacket/Home |
14/ 1 kW |
14/ 1 kW |
18/ 1 kW |
22/ 1 kW |
25/ 1 kW |
Maximum constructive regulating ratio Pmax/Pmin (grade 9-grade 1) |
1: 6 |
Minimum temperature of the water |
– |
30 ± 2°Ñ |
30 ± 2°Ñ |
30 ± 2°Ñ |
30 ± 2°Ñ |
Maximum temperature of the water |
– |
80 ± 2°Ñ |
80 ± 2°Ñ |
80 ± 2°Ñ |
80 ± 2°Ñ |
Temperature of the water in which the electronic protection excludes unconditionally stove |
– |
87 ± 2°Ñ |
87 ± 2°Ñ |
87 ± 2°Ñ |
87 ± 2°Ñ |
Quantity of water in the water shirt |
– |
20 dm³ |
26 dm³ |
30 dm³ |
30 dm³ |
Maximum working pressure in the water shirt |
– |
2 bar |
2 bar |
2 bar |
2 bar |
Width of the stove |
55 cm |
55 cm |
58 cm |
58 cm |
58 cm |
Height of the stove |
95 cm |
95 cm |
100 cm |
100 cm |
100 cm |
Depth of the stove |
60 cm |
60 cm |
66 cm |
66 cm |
66 cm |
Weight of the stove |
70 kg |
90 kg |
105 kg |
120 kg |
140 kg |
Fuel consumption |
0,7 ÷ 3.2 kg/hour |
0,7 ÷ 3.2 kg/hour |
0,7 ÷ 4.0 kg/hour |
0,7 ÷ 4.6 kg/hour |
0,7 ÷ 5.2 kg/hour |
The diameter of the smoke flue shall be checked |
80 mm |
The amount of pre-accession nozzles |
1 “ |
Minimum draught of the chimney |
15 Pa |
Volume of ashes |
1 dm³ |
Supply voltage |
~ 220V ± 10% |
Consumed electric power from the supply network |
100 W |
Class of protection against defeat by electric current in BS 63/1-90 |
1 |
Level of internal protection |
IP 21 |

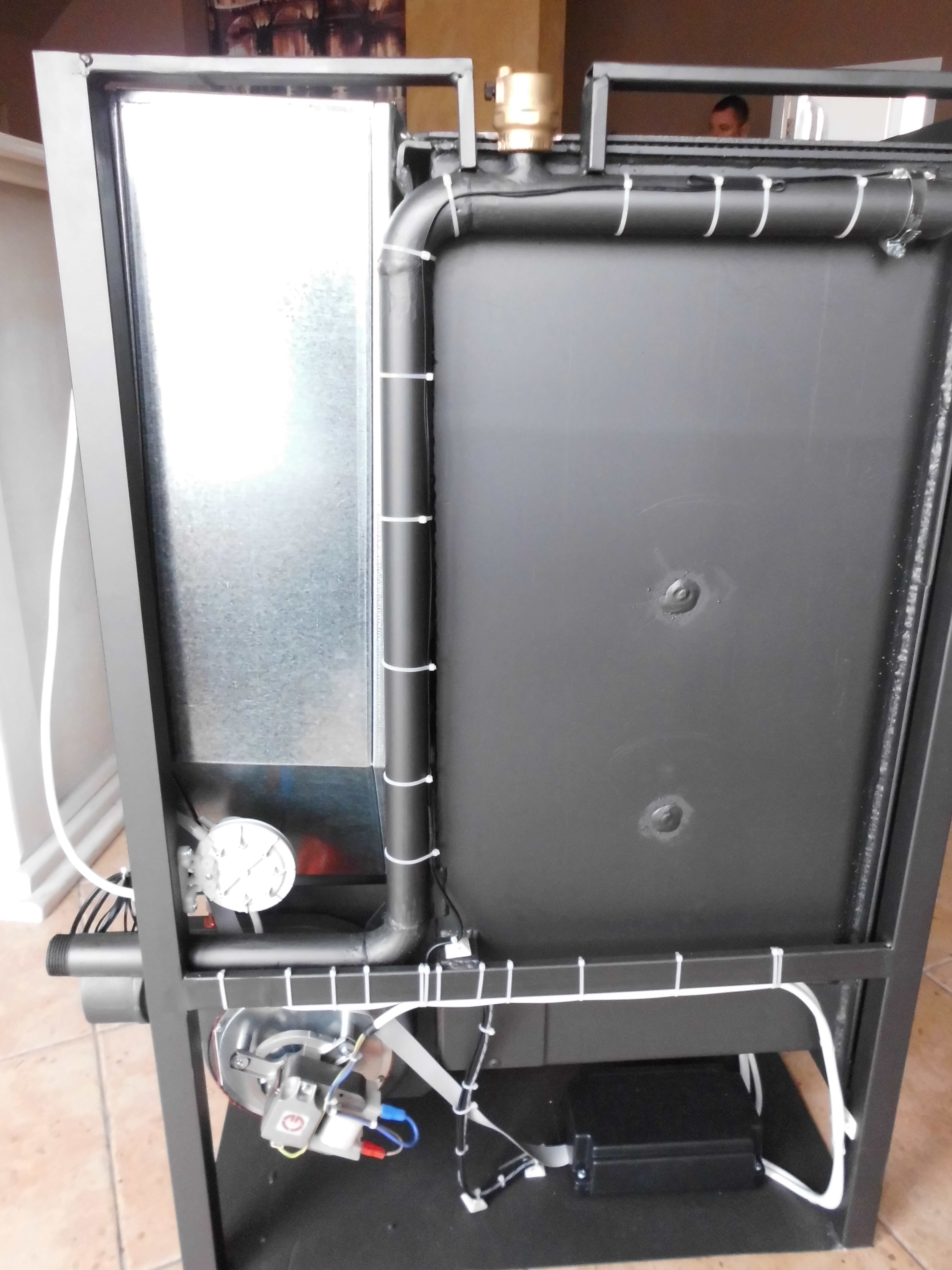

Ondestaand ziet u enkele fotos van de optioneel te bestellen cv set bestaande uit
circulatie pomp, exspansievat en veiligheids ventiel.
SUBSIDIE; TOT 1400 EURO SUBSIDIE MOGELIJK OP DEZE
KACHEL
Hoe werkt het?
SUBSIDIE; TOT 1400 EURO SUBSIDIE MOGELIJK OP DEZE
KACHEL
Hoe werkt het?
- U koopt een apparaat dat in aanmerking komt voor deze subsidie.
- U dient vervolgens de aanvraag in, uiterlijk 6 maanden nadat u de koopovereenkomst heeft gesloten.
- U kunt geen voorschot krijgen.
- U heeft meer dan 1 apparaat aangeschaft en u wilt voor alle apparaten subsidie aanvragen? Dat mag. Maar u doet 1 subsidieaanvraag per apparaat.
- De beslissing krijgt u binnen 8 weken na uw aanvraag. De betaling volgt maximaal 1 week na de beslissing.
Voorwaarden voor particulieren
- U heeft het apparaat na 1 januari 2017 aangeschaft
- Binnen 6 maanden na het sluiten van de koopovereenkomst heeft u een subsidieaanvraag ingediend
- U heeft de investering al gedaan voordat u een subsidieaanvraag doet. Dat betekent dat het apparaat bij aanvraag van de subsidie al is betaald, geïnstalleerd en in gebruik genomen
- Het apparaat is nieuw aangeschaft, u heeft een bewijs van aanschaf en u heeft een betaalbewijs. Het is uw eigendom
- Het apparaat is in Nederland geïnstalleerd
- U mag het apparaat niet binnen een jaar na de datum van de beslissing verwijderen
