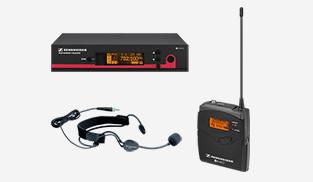

Headset 100 (bodypack transmitter + headset micro + diversity receiver)

General Description

Express yourself hands free: cover the whole stage and focus on your performance rather than on holding your microphone. The included cardioid condenser headset microphone is easy to wear, has great pop protection and produces powerful sound. Also included in this system is a stage-tested true diversity receiver and a bodypack transmitter with charging contacts for the optional BA2015 rechargeable battery.

Features

• Sturdy metal housing (transmitter and receiver
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Illuminated graphic display (transmitter and receiver)
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter feature battery indicatation in 4 steps, also shown on receiver display
• Programmable Mute function
• Integrated Equalizer and Soundcheck mode
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Wide range of accessories adapts the system to any requirement

Delivery Includes

• 1 EM 100 G3 rack-mount receiver
• 1 SK 100 G3 bodypack transmitter
• 1 ME 3-ew headset (cardioid)
• 1 NT 2 power supply unit
• 2 antennas
• 2 stacking elements
• 2 AA batteries
• Operating instructions

• Technical Data

  RF frequency range	516..... 865 MHz
  Transmission/receiving frequencies	1680
  Presets	12
  Switching bandwidth	42 MHz
  Peak deviation	+/- 48 kHz
  Compander	HDX
  Frequency response (microphone)	80.....18000 Hz
  Signal-to-noise ratio	> 110 dB(A)
  THD, total harmonic distortion	< 0,9 %
  In compliance with	ETS 300422 , ETS 300445 , CE , FCC
  Antenna connector	2 BNC, 50 Ohm
  Audio-XLR connector	6,3 mm
  Audio output level (balanced)	XLR: +18 dBu max
  Audio output level (unbalanced)	Jack: +12 dBu max
  Dimensions (Receiver)	212 x 202 x 43 mm
  Weight (Receiver)	900 g
  RF output power	30 mW
  Operating time (transmitter)	typ. 8 h
  Input voltage range	1,8 V line
  Input voltage range	2,4 V line
  Dimensions (Transmitter)	82 x 64 x 24 mm
  Weight (Transmitter)	~ 160 g
  Transducer; Microphone type	elektret
  AF sensitivity	1,6 mV/Pa
  Sound pressure level (SPL)	150 dB(SPL) max.
  Pick-up pattern	super-cardioid
