JIB   WORDT   ZONDER   GEWICHTEN  GELEVERD!

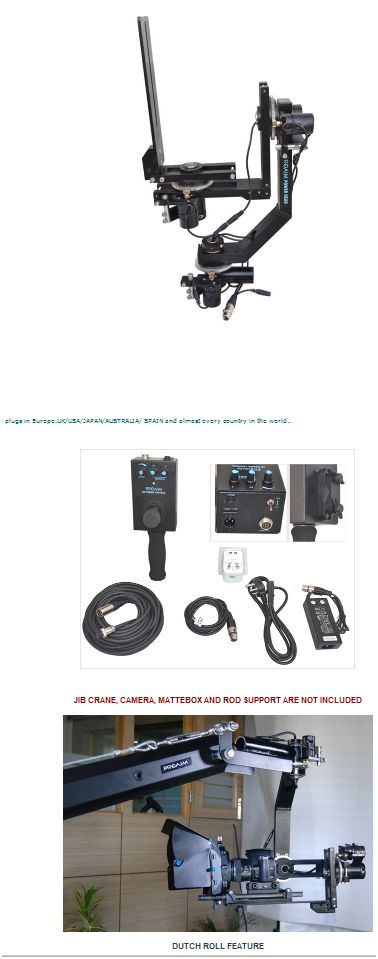

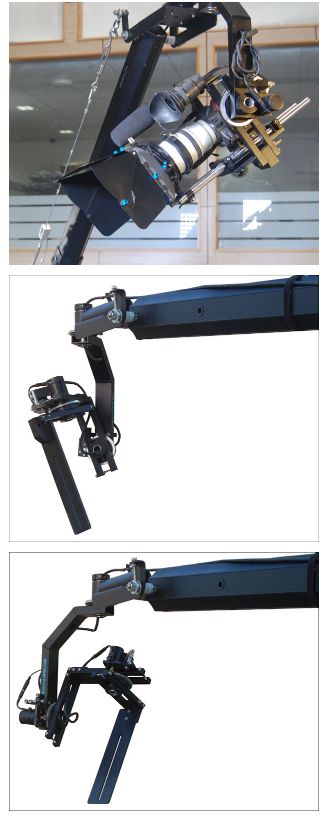

For DV/HDV/DSLR Movie Cameras weighing upto 30lbs NEW ! Remote 3-Axis 360 degree Dutch Roll Head gives a lot of flexibility to the cranes. The remote Head comes with: Joystick Box Foam Packing with Bag 24 volt AC Adapter Universal Adapter 32ft long cable 1.5 meter long cable Our Proaim Dutch Roll Head is the upgrade you need to create more  artistic moves that include a variety of Dutch angles. you can now roll your camera 360 degrees and still achieve 360 degree pan & tilt moves at the same time. No other system will give you this range of motions with the same smooth results. This Head comes with joystick remote that controls the pan, tilt & rolling  movements of this head and allows you to create extraordinary videos. . It works on 24 volt power through the included AC adapter and easily accepts external 24VDC battery power through the included a 1.5 meter long 3pinXLR cable. This 3-Axis Dutch Roll head is a solid build quality and well designed unit. The head frame, gears & joystick controller are very solid. The frame i s made of a high grade metal. The XLR cables are built in to the motor and blends well with the rest of the frame. the gears on the head are sturdy and solid quality. The head is wrapped up in plastic which helps  protect the finish. PAN TILT & ROLL MOVEMENT CAN ALSO BE USED ONLY AS PAN & TILT HEAD                         SPECIFICATIONS: Maximum camera weight: 30 lbs. Weight of 3-Axis Dutch head- 11lbs Pan, till & roll movement: 360 degrees Variable-controlled speed Maximum height of head: 24 inch Precision machined parts with the highest standards of industrial grade electronic components AC Adapter input - AC 100 - 240V ; output - DC 24V -3A Has Three high torque, coreless DC motors that rotates the head at 360 degrees. The camera platform height can be adjusted at any point. FEATURES: This head has 360 degree panning, tilting & rolling movement with 4 to 5 complete circles and then with reverse point... Speed is variable and is easily controlled and adjusted by "Speed" and "Dead Spot" potentiometers on the control unit. The Deadspot control determines the center band of the joystick where no motion will occur. This way you can set it to your abilitites and insure no crossover to the other axis when not wanted. You can use this head for outdoors shoot occasionally but with some Sort of protection cover i.e rain cover or fiber sheet. The Head comes Carrying case with custom fit packing. You receive the 3-Axis Head with assembled wiring with Motors. You just need to Install the Power out to head (3 pin connector) and 24 volt DC power (4 pin XLR) in rear of joystick box.

SPECIFICATIONS:   3D  PAN  TILT  HEAD

• Maximum camera weight: 30 lbs.
• Weight of 3-Axis Dutch head- 11lbs

• Pan, till & roll movement: 360 degrees

• Variable-controlled speed

• Maximum height of head: 24 inch

• Precision machined parts with the highest standards of industrial
• grade electronic components

• AC Adapter input - AC 100 - 240V ; output - DC 24V -3A

• Has Three high torque, coreless DC motors that rotates the head at
• 360 degrees.

• The camera platform height can be adjusted at any point.

FEATURES:

• This head has 360 degree panning, tilting & rolling movement with
•  4 to 5 complete circles and then with reverse point...

• Speed is variable and is easily controlled and adjusted by "Speed"
• and "Dead Spot" potentiometers on the control unit.

• The Deadspot control determines the center band of the joystick
• where no motion will occur. This way you can set it to your abilitites
• and insure no crossover to the other axis when not wanted.

• You can use this head for outdoors shoot occasionally but with some
• sort of protection cover i.e rain cover or fiber sheet.

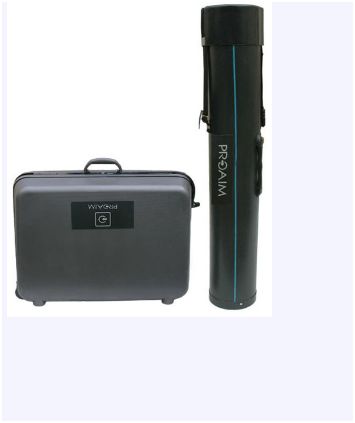

• The Head comes Carrying case with custom fit packing.

• You receive the 3-Axis Head with assembled wiring with Motors.
• You just need to Install the Power out to head (3 pin connector)
• and 24 volt DC power (4 pin XLR) in rear of joystick box.

For DV/HDV/DSLR Movie Cameras weighing upto 30lbs NEW ! Remote 3-Axis 360 degree Dutch Roll Head gives a lot of flexibility to the cranes. The remote Head comes with: Joystick Box Foam Packing with Bag 24 volt AC Adapter Universal Adapter 32ft long cable 1.5 meter long cable Our TITAN Dutch Roll Head is the upgrade you need to create more artistic moves that include a variety of Dutch angles. you can now roll your camera 360 degrees and still achieve 360 degree pan & tilt moves at the same time. No other system will give you this range of motions with the same smooth results. This Head comes with joystick remote that controls the pan,  tilt & rolling movements of this head and allows you to create extraordinary videos. . It works on 24 volt power through the included AC adapter and easily accepts external 24VDC battery power through the included a 1.5 meter long 3pinXLR cable. This 3-Axis Dutch Roll head is a solid build quality and well designed unit.  The head frame, gears & joystick controller are very solid. The frame is made of a high grade metal. The XLR cables are built in to the motor and blends well with the rest of the frame. the  gears on the head are sturdy and solid quality. The head is wrapped up in plastic which helps protect the finish. PAN TILT & ROLL MOVEMENT     CAN ALSO BE USED ONLY AS PAN & TILT HEAD SPECIFICATIONS: Maximum camera weight: 30 lbs. Weight of 3-Axis Dutch head- 11lbs Pan, till & roll movement: 360 degrees Variable-controlled speed Maximum height of head: 24 inch Precision machined parts with the highest standards of industrial grade  electronic components AC Adapter input - AC 100 - 240V ; output - DC 24V -3A Has Three high torque, coreless DC motors that rotates the head at 360 degrees. The camera platform height can be adjusted at any point. FEATURES: This head has 360 degree panning, tilting & rolling movement with  4 to 5 complete circles and then with reverse point... Speed is variable and is easily controlled and adjusted by "Speed" and "Dead Spot" potentiometers on the control unit. The Deadspot control determines the center band of the joystick where no motion will occur. This way you can set it to your abilitites and insure  no crossover to the other axis when not wanted. You can use this head for outdoors shoot occasionally but with some  sort of protection cover i.e rain cover or fiber sheet. The Head comes Carrying case with custom fit packing. You receive the 3-Axis Head with assembled wiring with Motors.  You just need to Install the Power out to head (3 pin connector)  and 24 volt DC power (4 pin XLR) in rear of joystick box.

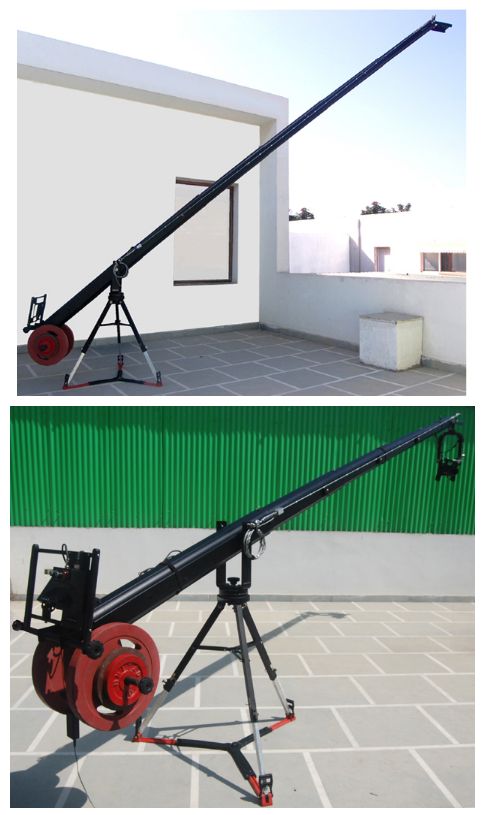

1. titan 4,88m  Long Jib Arm comes with following Parts:

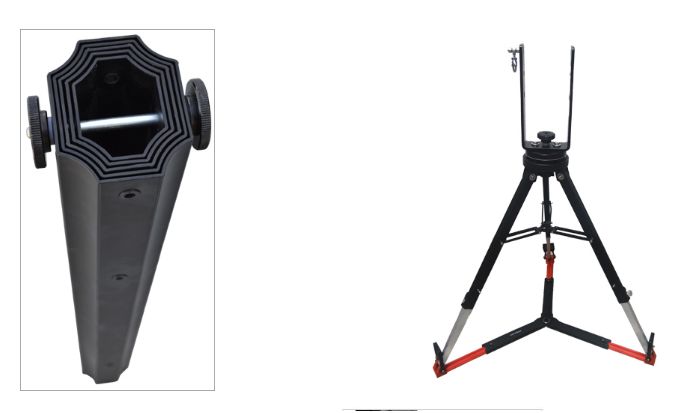

2. TITAN 100mm Bowl Jib Stand(LW-100)
3. Spreader & feet
