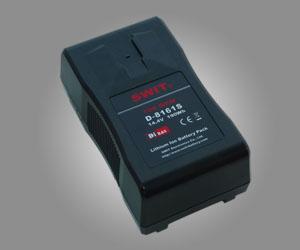

D-8161S is a lightweight 190Wh V-mount digital camera battery in SWIT DIBAS system. It has a 4-level LED indicator to give you a view of remaining power before mounting to camera, and a connecting shoe for wireless receiver S-7002. The build-in intelligent circuit has multiple protections of abnormal current, voltage and temperature.
D-8161S runs completely compatible with RED camera, and the remaining capacity and running time could be read from RED camera.
By connecting with D-4200 battery watch, it can read battery information including exact remaining capacity, running time, real-time power, voltage, circuit and so on.
Voltage |
14.4V |
Capacity |
190Wh |
Max output power |
80W |
Max output current |
5.5A |
Over current protection |
10A |
Mount type |
V-mount |
Operation Temperature |
0 - 40 °C |
Net weight |
Approx 1.3kg |
Dimensions |
168×98×68mm |
